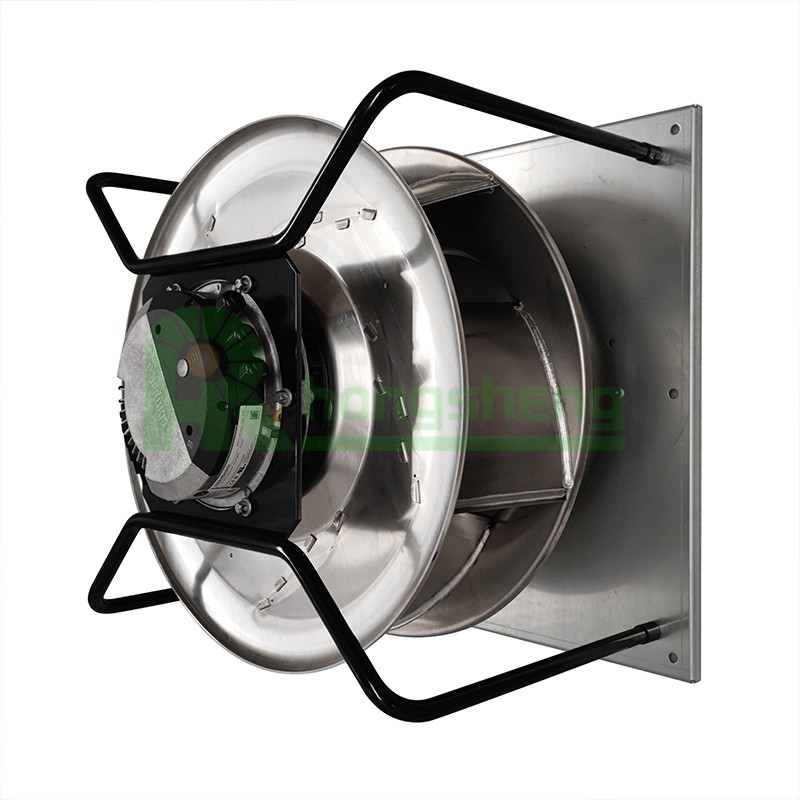

Ebm-papst K3G500-PB24-W5 400V 9305CFM EC Centrifugal Fan For Data Centers
Brand：ebm-papst (100% Genuine)
Model：K3G500-PB24-W5
Category：Centrifugal Fan
Description： 100% genuine ebm-papst 500mm EC centrifugal fan. Generates 9305 CFM airflow and 1300 Pa pressure at 2000 RPM. Certified for server spaces and data centers. Fully stocked for quick global delivery.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
K3G500-PB24-W5
|
|
Fan Type：
|
Centrifugal Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
500
|
|
Max.Air Flow(CFM)：
|
9305
|
|
Input Power(W)：
|
3900
|
|
Speed(RPM)：
|
2000
|
|
Max.Pressure(Pa):
|
1300
|

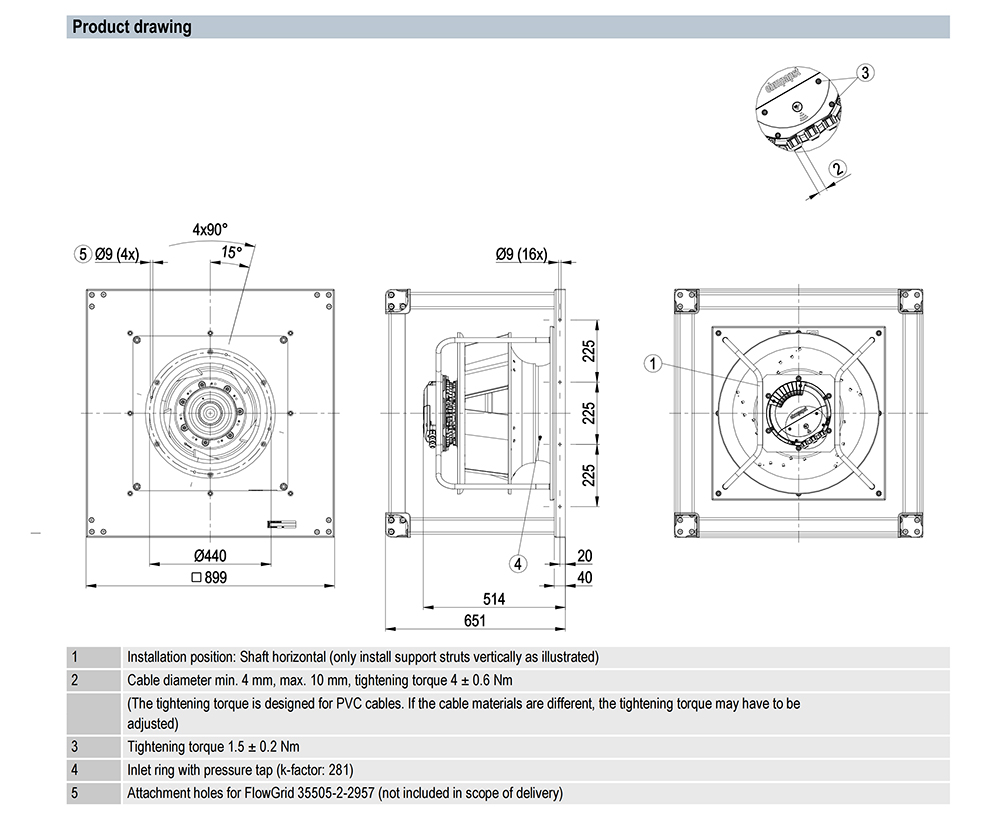

Specification Drawing:
Reliable Cooling Solution for Data Center & IT Infrastructure Applications
The K3G500-PB24-W5 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in enterprise data center cooling systems, ensuring stable performance, low energy consumption, and long service life. Its high-pressure 1300 Pa output profile and sheet aluminum impeller make it excellent for driving air through packed computing components.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst K3G500-PB24-W5, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
High-Static Pressure CRAH Arrays:
Provides high-pressure air delivery for computer room air handlers configured with thick air filters or complex ducting systems.
Central Server Room Conditioning Plenums:
Distributes high-volume, conditioned air through primary facility plenums, maintaining tight temperature control in large data halls.
Modular Telecommunication Substations:
Offers reliable cooling for high-capacity routing and switching centers, keeping communication infrastructure running safely.
Frequently Asked QuestionsQ1: What are the programmable I/O capabilities of the ebm-papst K3G500-PB24-W5 fan for advanced data center automation?
This model is designed with configurable inputs and outputs (I/O) linked to its MODBUS V6.3 architecture. System operators can remap specific analog ports, adjust signal thresholds, or program custom step responses, allowing the fan to blend perfectly into custom facility automation loops.
Q2: What is the benefit of the integrated SELV control interface for electrical safety in server environments?

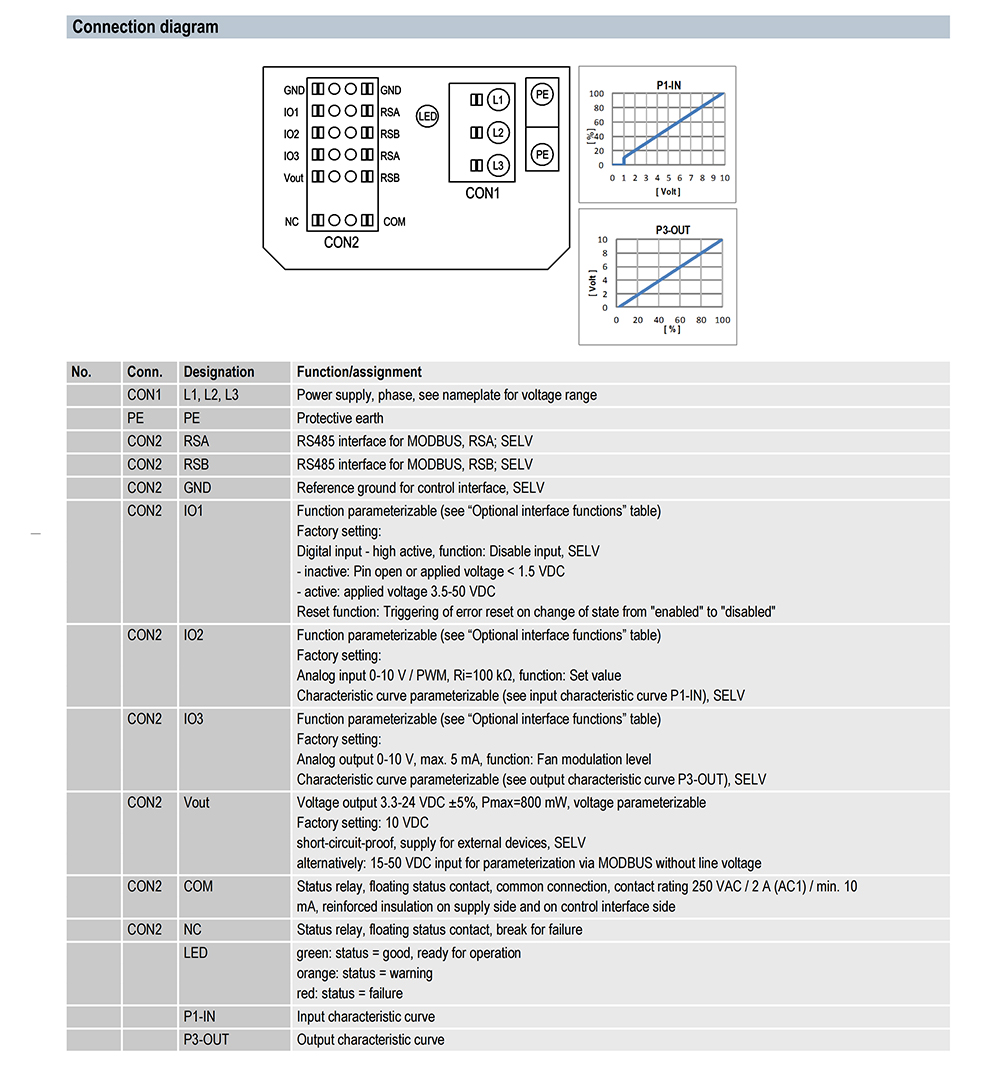

The control interface uses a SELV (Safety Extra-Low Voltage) potential safely disconnected from the mains. This design isolates low-voltage control lines from high-voltage motor lines, protecting maintenance staff from shocks during adjustments and preventing power faults from damaging sensitive server monitoring networks.
Q3: What protection features safeguard the fan if internal electronic components begin to overheat?
The fan includes built-in thermal overload protection for both the electronics and motor. If airflow becomes restricted and internal temperatures rise, the fan automatically scales back its speed via smart thermal derating to cool itself down while keeping vital ventilation running.
