Ebm-papst R3G630-FC04-03 400V 12925CFM EC Centrifugal Fan For Data Centers
Brand：ebm-papst (100% Genuine)
Model：R3G630-FC04-03
Category：Centrifugal Fan
Description： 100% genuine ebm-papst 630mm EC centrifugal fan. Delivers 12925 CFM airflow and 800 Pa static pressure at 1470 RPM. Certified for server space ventilation. Ample stock available for fast shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
R3G630-FC04-03
|
|
Fan Type：
|
Centrifugal Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
630
|
|
Max.Air Flow(CFM)：
|
12925
|
|
Input Power(W)：
|
4050
|
|
Speed(RPM)：
|
1470
|
|
Max.Pressure(Pa):
|
800
|

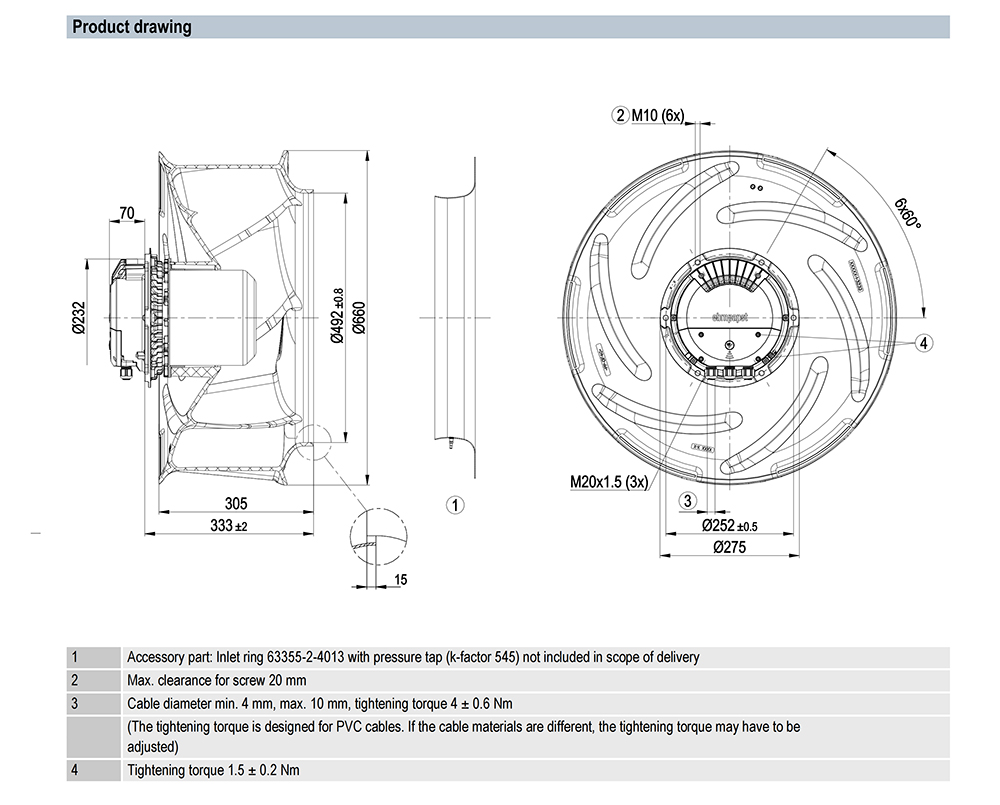

Specification Drawing:
Reliable Cooling Solution for Data Center & IT Infrastructure Applications
The R3G630-FC04-03 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in enterprise data center cooling systems, ensuring stable performance, low energy consumption, and long service life. Its 6-blade PP plastic impeller balances high aerodynamic performance with exceptionally low power draw.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst R3G630-FC04-03, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Data Center Inline Duct Ventilation:
Fits easily into tight overhead or underfloor duct networks to improve airflow balancing across large server rooms.
Modular Server Room Air Handlers:
Acts as a primary high-efficiency fan component inside standard modular air conditioning units built for enterprise computing spaces.
High-Efficiency Economizer Systems:
Controls air circulation inside data center air economizers, pulling in cool outdoor air to lower compressor cooling costs.
Frequently Asked QuestionsQ1: What installation positions are permitted for the R3G630-FC04-03 model within narrow electronics enclosures?
This model is certified for flexible setups with the shaft horizontal or the rotor on the bottom. A custom version for a rotor-on-top layout can also be specified on request, providing engineering teams with versatile orientation options to match tight spaces in server cabinets.
Q2: What global safety testing benchmarks and certifications does this 630mm fan satisfy?
The fan complies with EN 61800-5-1, CE, and UKCA standards, and carries formal CSA C22.2 No. 77, EAC, and UL 1004-7 approvals. This broad compliance profile guarantees the unit meets international safety guidelines, streamlining equipment approvals for global export.
Q3: How does the onboard LED system help field technicians with troubleshooting and maintenance?

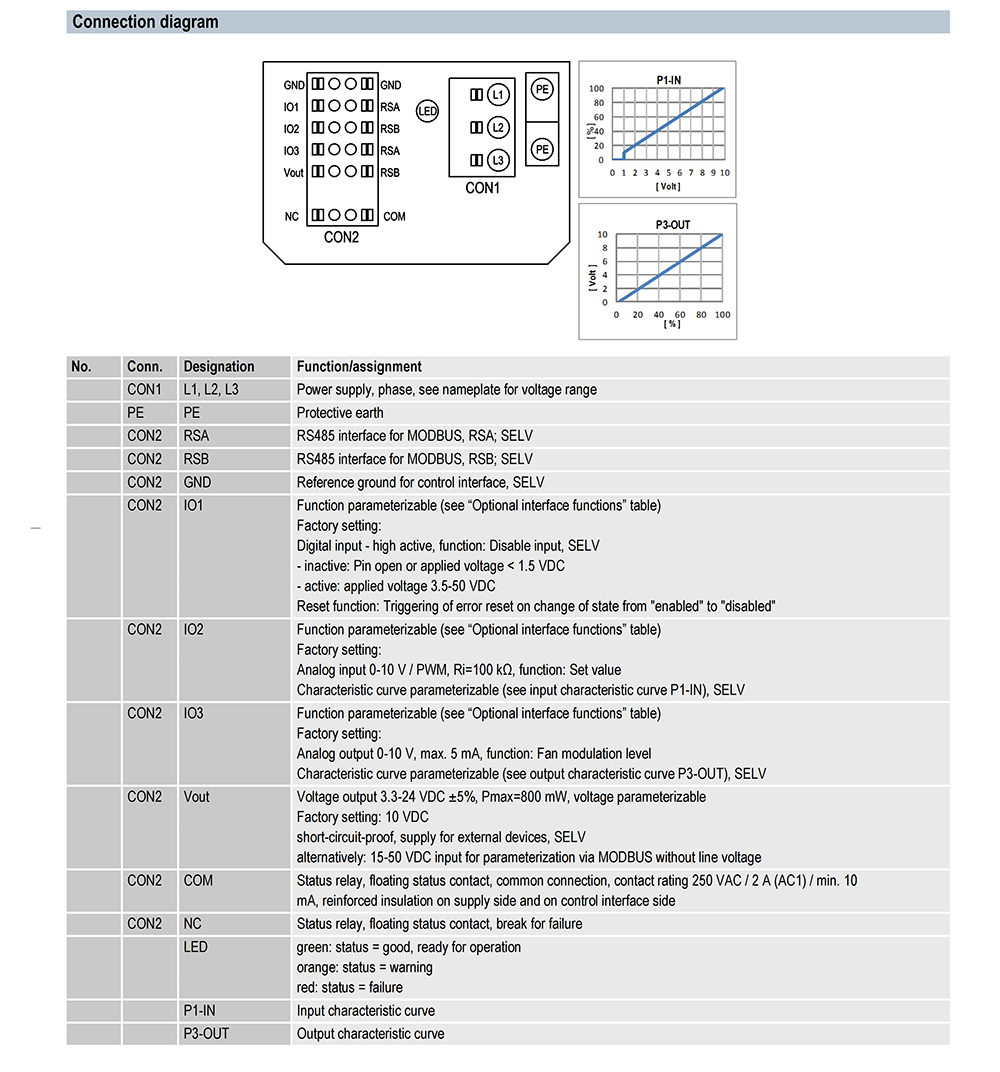

The fan features an integrated operation and alarm display with an LED indicator right on its electronics housing. This allows on-site maintenance crews to quickly check device status and diagnose fault codes visually, minimizing diagnostic times and simplifying routine maintenance checks.
