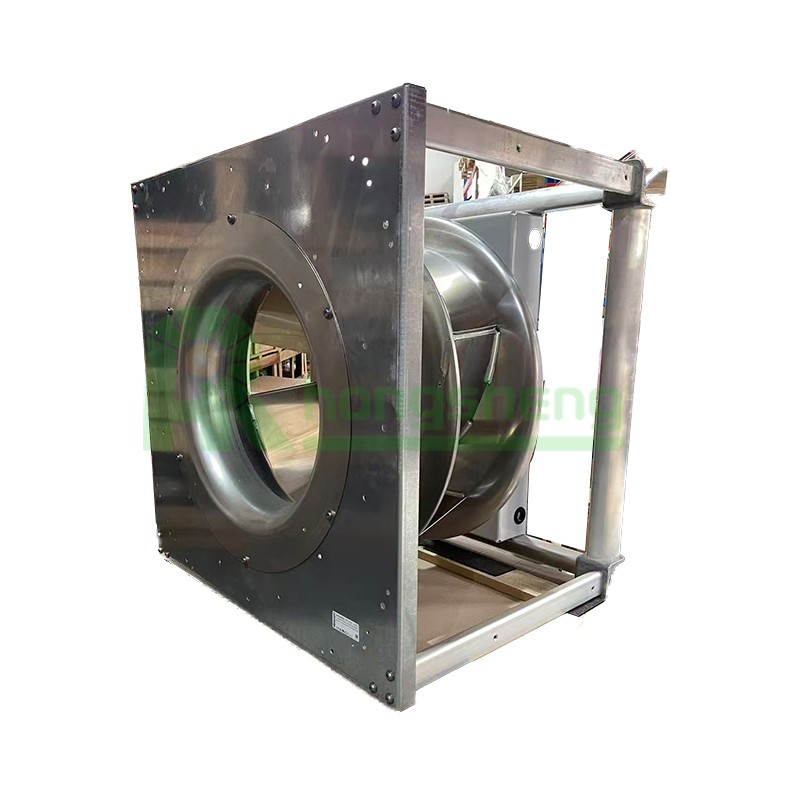

Ebm-papst K3GA00-PV03-35 400V 1000mm EC Centrifugal Fan For Cooling Towers
Brand：ebm-papst (100% Genuine)
Model：K3GA00-PV03-35
Category：Centrifugal fans
Description： 100% genuine ebm-papst massive 1000mm EC fan. Delivers 6340W of power at 750 RPM for heavy-duty cooling tower systems. Fully stocked and available for immediate worldwide shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
K3GA00-PV03-35
|
|
Fan Type：
|
Centrifugal Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
1000
|
|
Input Power(W)：
|
6340
|
|
Speed(RPM)：
|
750
|

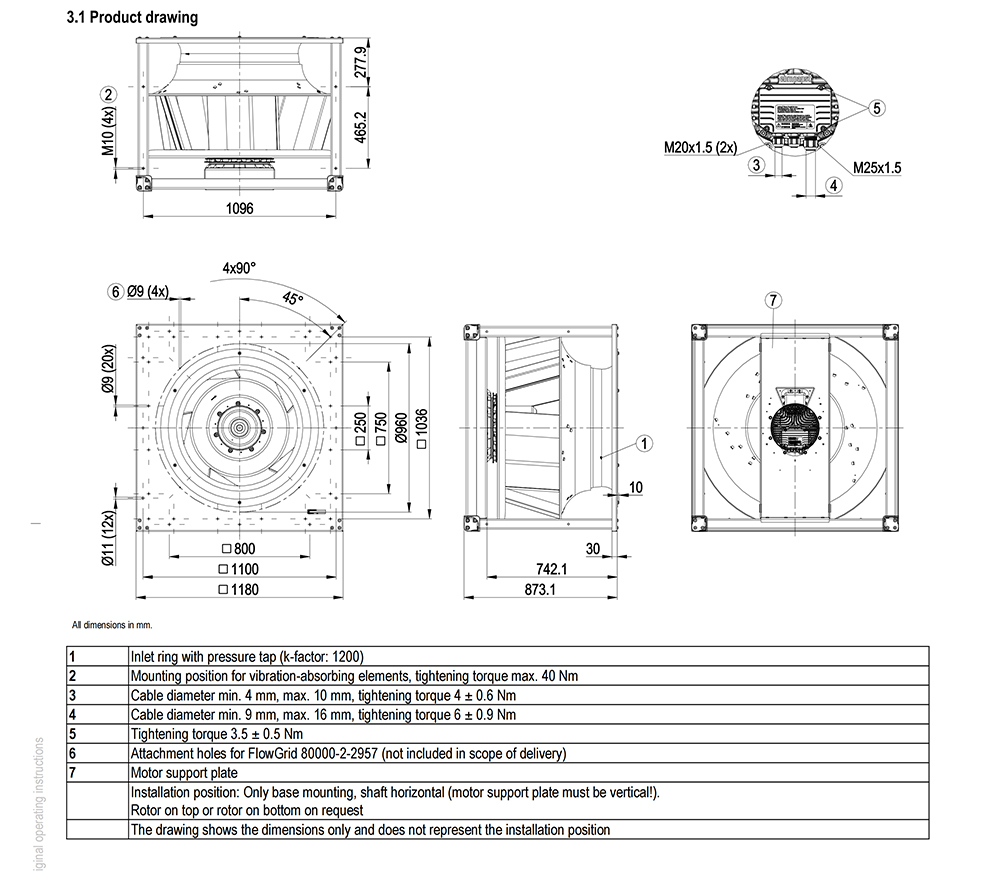

Specification Drawing:
Reliable Cooling Solution for Industrial & HVAC Applications
The K3GA00-PV03-35 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in industrial cooling systems, ensuring stable performance, low energy consumption, and long service life. Weighing 168 kg and featuring a 1000mm aluminum impeller driven by a heavy-duty Motor Size 200 block, it provides an ultra-rugged option for heavy-duty facility cooling applications.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst K3GA00-PV03-35, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
High-Capacity Centrifugal Cooling Towers:
Installed inside heavy industrial cooling tower fan networks where high static pressure is required to push air through dense water distribution fills and drift eliminators.
Hyperscale Facility Mechanical Ventilation:
Acts as a central air handler for large commercial manufacturing plants, processing facilities, and deep underground equipment rooms requiring high-volume air movement.
Large-Scale District Cooling Plants:
Integrated into centralized urban cooling networks to manage high heat loads from industrial refrigeration machines and massive water chillers.
Frequently Asked QuestionsQ1: What electronic protection features are built into this large 1000mm centrifugal fan to prevent electrical damage during 24/7 continuous use?
This fan features comprehensive electronic safeguards, including line undervoltage and phase failure detection, motor/electronics overtemperature tracking, and reverse polarity protection. It also includes a soft-start function to eliminate large inrush current spikes on your power grid, protecting your plant's power distribution network during startups.
Q2: How does the integrated PID controller optimize efficiency and automated airflow control in large industrial ventilation loops?
The built-in PID controller allows the fan to act as a self-regulating control loop. By connecting temperature or pressure sensors directly to its 0-10V or 4-20mA analog inputs, the fan dynamically adjusts its operating speed in real time. This keeps air distribution precisely matched to demand, removing the need for an external PLC controller.
Q3: What makes the parameter storage system on the K3GA00-PV03-35 durable enough for long-term industrial tracking and data logging?
The fan's digital control brain includes a high-end internal EEPROM rated for a maximum of 100,000 write cycles. This provides more than enough overhead for frequent configuration updates and telemetry monitoring over the RS485 Modbus-RTU network, ensuring your operating presets remain safely stored without memory degradation risks over years of use.
